Twin Arrow Pipe Markers
Twin arrow pipe markers are bespoke self adhesive labels printed to suit pipe diameter to ANSI/ASME A13.1 or BS1710 standards.
Types of Twin Arrow Labels

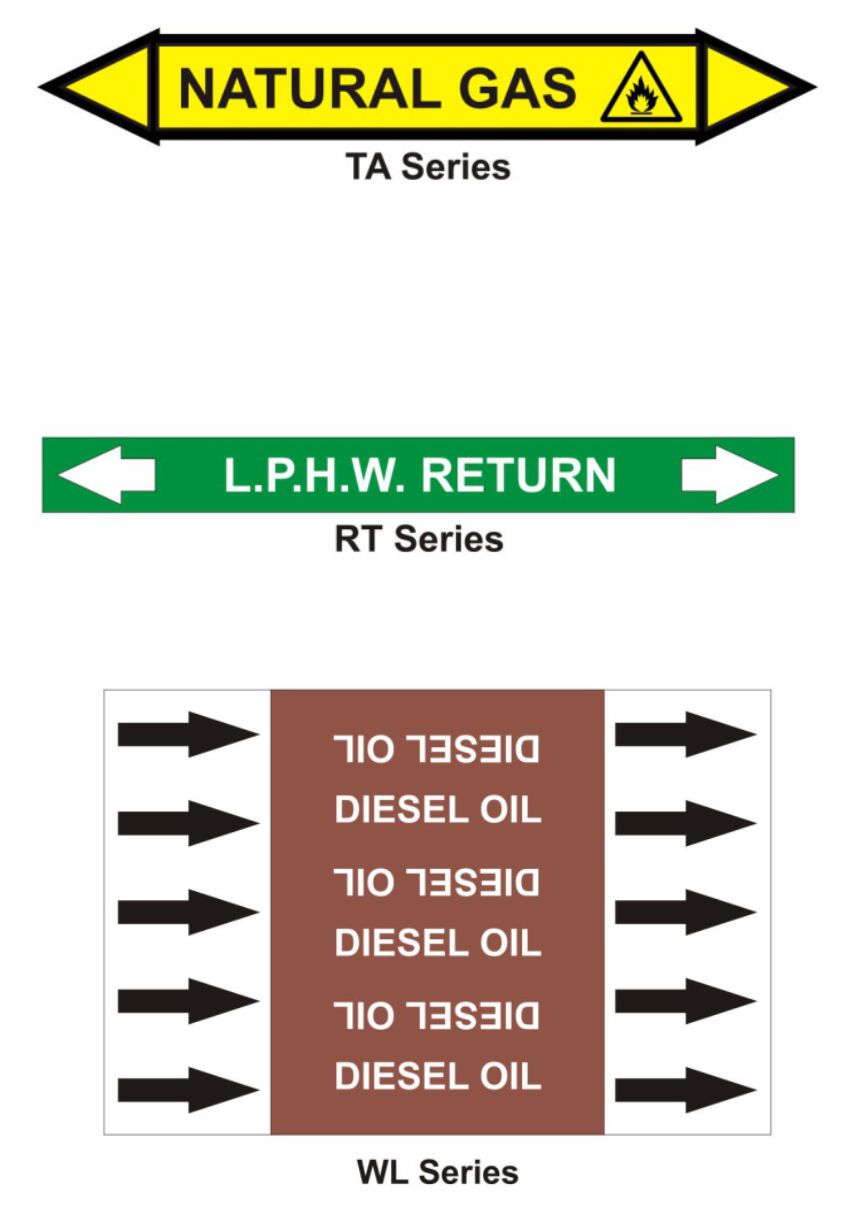

We offer 3 types of twin arrow markers (opposite)
RT Series: Individual rectangular labels to ANSI/ASME A13.1 with text and colour code. The arrow can be removed from one end prior to application to indicate flow or return.
TA Series: Individual arrow shaped labels to ANSI/ASME A13.1 with text and colour code. The arrowhead can be removed from one end prior to application to indicate flow or return.
WL Series: Individual wrap around labels to BS1710 with colour code and text alternatively repeated through 180 degrees so the arrows are always orientated correctly to indicate flow or return.
TIP: When enquiring or ordering twin arrow pipe markers please state the outside diameter of the pipe including any lagging.

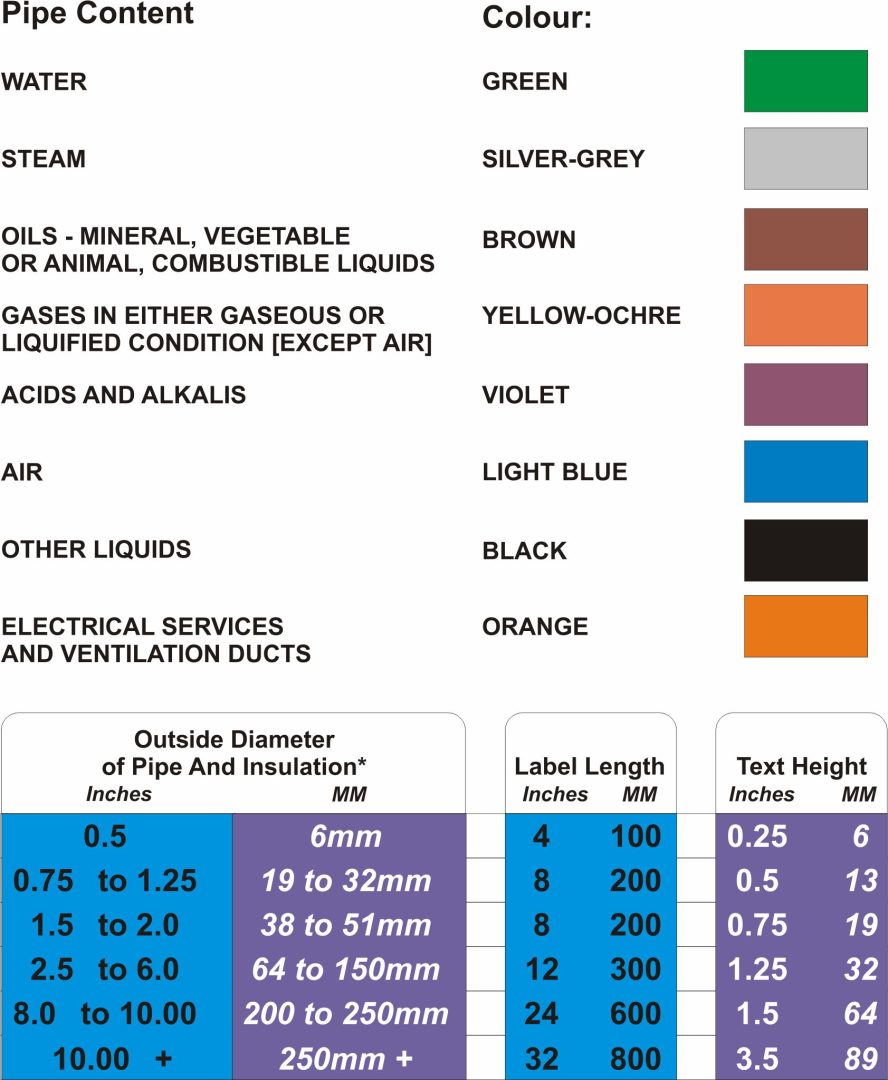

ANSI/ ASME 13.1 Standards
Pipe Marker Size Chart
Contact us to discuss your requirements
| Product Specifications | |
|---|---|
| Material | High Performance uPVC Film |
| Thickness | 70 micron |
| Adhesive | Solvent Based Acrylic • Permanent |
| Thermal Transfer • UV Inkjet | |
| Temperature Range | -30ºC to + 90ºC |
| Adhesive Strength | 20N/25mm (Final TM 1/24h) |
| Durability | 5-8 Years (Outside) |
